Have you worked with an Excel or CSV file that changes slightly their column names? Whatever the reason, this seems to make your Power BI refresh crash.
As you know, Power Query is very susceptible to any change, especially using Functions such as Table.ReorderColumns
or Table.SelectRows
.
To solve that problem we have developed a function called ColumnStandardizer
. The idea as the name suggests is to standardize a set of columns from a given table based on a list of predefined columns.
Example #1

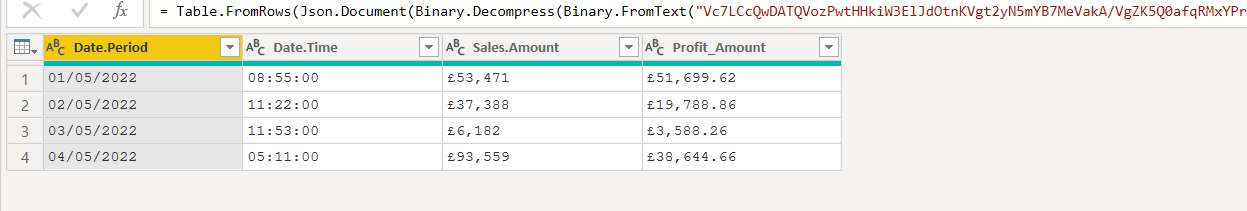

Assuming receiving a monthly table like the one below.
The column headers are roughly the same, but rarely are exactly the same, so appending a folder will not work as expected.
Date.Period | Date.Time | Sales.Amount | Profit_Amount |
---|---|---|---|
01/05/2022 | 08:55:00 | £53,471 | £51,699.62 |
02/05/2022 | 11:22:00 | £37,388 | £19,788.86 |
03/05/2022 | 11:53:00 | £6,182 | £3,588.26 |
04/05/2022 | 05:11:00 | £93,559 | £38,644.66 |
Standard Names
The first step is to decide on the standard names of your columns. We have defined the ones for the table above.
- Date Period
- Date Time
- Sales Amount
- Profit Amount
That means we have removed unnecessary characters and added a space for clarity.
How to use the function
Steps
- Define your standard columns as a list.
- Get the columns name as a list from your table.
- Pass the two lists to ColumnStandardizer.
To simplify the code I’ve used Source = Table
.
let
Source = Table,
GetColumnNames = Table.ColumnNames(Source),
RenameList = ColumnStandardizer(
GetColumnNames,
{"Date Period", "Date Time", "Sales Amount", "Profit Amount"}
),
ReplaceColumnNames = Table.RenameColumns(Source, RenameList)
in
ReplaceColumnNames
The second argument of ColumnStandardizer defines the standard list of columns {"Date Period", "Date Time", "Sales Amount", "Profit Amount"}
. This can be also defined in a Power Query variable as we did.

Example #2
The same example as before, the only difference is we have an additional column we weren’t expecting, Margin
.
Date.Period | Date.Time | Sales.Amount | Profit_Amount | Margin |
---|---|---|---|---|
01/04/2022 | 08:55:00 | £53,471 | £51,699.62 | 97% |
02/04/2022 | 11:22:00 | £37,388 | £19,788.86 | 53% |
03/04/2022 | 11:53:00 | £6,182 | £3,588.26 | 58% |
04/04/2022 | 05:11:00 | £93,559 | £38,644.66 | 41% |
Well, that’s not a problem. We can do the same we did before, and we just need to add an additional step with Table.SelectColumns
.
Basically, because we have standardised the column names, and we have defined that list beforehand, we use the list again in Table.SelectColumns
to
let
Source = Table,
GetColumnNames = Table.ColumnNames(Source),
StandardColumns = {"Date Period", "Date Time", "Sales Amount", "Profit Amount"},
RenameList = ColumnStandardizer(GetColumnNames, StandardColumns),
ReplaceColumnNames = Table.RenameColumns(
Source,
ColumnStandardizer(
GetColumnNames,
{"Date Period", "Date Time", "Sales Amount", "Profit Amount"}
)
),
SelectColumns = Table.SelectColumns(ReplaceColumnNames, StandardColumns)
in
SelectColumns
Source
- The code is stored on Github:
https://github.com/acanepas/ColumnStandardizer - Power BI Sample
https://github.com/acanepas/ColumnStandardizer/blob/main/ColumnStandardizer%20Example.pbix
3. Full code:
/**
* Returns the second argument for Table.RenameColumns to
* rename a table with a given list of standard column names.
* @author https://github.com/acanepas
* @source https://github.com/acanepas/ColumnStandardizer
* @license MIT (c) 2022 Angelo Canepa
* @version 2022-06-09-1
*/
let
Source = (
column_names as list,
standard_column_names as list,
optional score as nullable number,
optional symbol_list as nullable list
) as list =>
////////////////////////////////////////////////////////////
// Functions Defitinions
///////////////////////////////////////////////////////////
let
/*
Function: GetTextSimilarity
Description:Define a text similarity function between two strings.
Arguments:
1. col_one: Original column name to be compared. Example: "date.month"
2. col_two: New Target column name. Example: "date month"
3. symbol_list: List of symbols to consider to exclude from column names. Example: {".","-"}
*/
GetTextSimilarity = (col_one as text, col_two as text, optional symbol_list as list) as number =>
let
default_symbols = {".","/","_","-"," ","\"},
col_one_clean =
if symbol_list <> null then
Text.Remove(col_one, symbol_list)
else
Text.Remove(col_one, default_symbols),
col_two_clean =
if symbol_list <> null then
Text.Remove(col_two, symbol_list)
else
Text.Remove(col_two, default_symbols),
Records = [
ColumnNameOne = Text.Lower(col_one_clean),
ColumnNameTwo = Text.Lower(col_two_clean)
],
ToTable = Record.ToTable(Records),
Pivoted = Table.Pivot(ToTable, List.Distinct(ToTable[Name]), "Name", "Value"),
LengthColOne = Text.Length(Text.Remove(Pivoted[ColumnNameOne]{0}, " ")),
LengthColTwo = Text.Length(Text.Remove(Pivoted[ColumnNameTwo]{0}, " ")),
ListCol = Table.AddColumn(
Pivoted,
"ListFirstCol",
each Text.ToList(Text.Remove([ColumnNameOne], " "))
),
ExpandList = Table.ExpandListColumn(ListCol, "ListFirstCol"),
AddIndex = Table.AddIndexColumn(ExpandList, "Index", 0, 1, Int64.Type),
IndexedCol = Table.AddColumn(
AddIndex,
"IndexCol",
each
if ([Index] + 1) > LengthColTwo then
null
else
Text.ToList(Text.Remove(Text.Lower([ColumnNameTwo]), " ")){[Index]}
),
IndexedColLag = Table.AddColumn(
IndexedCol,
"IndexedColLag",
each
if ([Index]) > LengthColTwo or ([Index] - 1) < 0 then
null
else
Text.ToList(Text.Remove(Text.Lower([ColumnNameTwo]), " ")){[Index] - 1}
),
IndexedColLead = Table.AddColumn(
IndexedColLag,
"IndexedColLead",
each
if ([Index] + 2) > LengthColTwo then
null
else
Text.ToList(Text.Remove(Text.Lower([ColumnNameTwo]), " ")){[Index] + 1}
),
GetScore = Table.AddColumn(
IndexedColLead,
"Score",
each
if [ListFirstCol] = [IndexCol] then
1
else if [ListFirstCol] = [IndexedColLag] then
1
else if [ListFirstCol] = [IndexedColLead] then
1
else
0
),
TotalScoreAmount = List.Sum(GetScore[Score]),
ScorePercentage = Value.Divide(TotalScoreAmount, LengthColOne)
in
ScorePercentage,
/*
Function: GetColumnScore
Description: From a given column index, compares the original column names against a standard.
Arguments:
1. column_index: The column position.
2. Column_names: List of column names to be replaced.
3. Standard Column Names: List of columns set as standard.
*/
GetColumnScore = (
column_index as number,
column_names as list,
standard_column_names as list,
optional symbol_list as list
) =>
let
Source = List.Generate(
() => 0,
each _ <= (List.Count(standard_column_names) - 1),
each _ + 1,
each GetTextSimilarity(
standard_column_names{_},
column_names{column_index},
symbol_list
)
),
#"Converted to Table" = Table.FromList(
Source,
Splitter.SplitByNothing(),
{"Score"},
null,
ExtraValues.Error
),
#"Added Index" = Table.AddIndexColumn(#"Converted to Table", "Index", 0, 1, Int64.Type),
MaxVal = List.Max(#"Converted to Table"[Score]),
Step2 = Table.SelectRows(#"Added Index", each [Score] = MaxVal),
#"Added Custom" = Table.AddColumn(
Step2,
"StandardColName",
each standard_column_names{[Index]}
),
#"Removed Columns" = Table.RemoveColumns(#"Added Custom", {"Index"}){0}
in
#"Removed Columns",
////////////////////////////////////////////////////////////
// Main Function Operation
///////////////////////////////////////////////////////////
score = if score = null then 0.85 else score,
ColumnList = List.Generate(
() => 0,
each _ <= (List.Count(column_names) - 1),
each _ + 1,
each GetColumnScore(_, column_names, standard_column_names, symbol_list)
),
#"Converted to Table" = Table.FromList(
ColumnList,
Splitter.SplitByNothing(),
null,
null,
ExtraValues.Error
),
#"Expanded Column1" = Table.ExpandRecordColumn(
#"Converted to Table",
"Column1",
{"Score", "StandardColName"},
{"Column1.Score", "Column1.StandardColName"}
),
#"Added Index" = Table.AddIndexColumn(#"Expanded Column1", "Index", 0, 1, Int64.Type),
#"Added Custom" = Table.AddColumn(#"Added Index", "OriginalCol", each column_names{[Index]}),
#"Filtered Rows" = Table.SelectRows(#"Added Custom", each [Column1.Score] >= score),
#"Removed Columns" = Table.RemoveColumns(#"Filtered Rows", {"Column1.Score", "Index"}),
#"Reordered Columns" = Table.ReorderColumns(
#"Removed Columns",
{"OriginalCol", "Column1.StandardColName"}
),
Rename_list = Table.ToColumns(Table.Transpose(#"Reordered Columns"))
in
Rename_list,
documentation = [
Documentation.Name = "Column Standardizer",
Documentation.Description
= "Power Query function that helps standardize column names from a given table and a given list of standard column names.",
Documentation.Author = "Angelo Canepa (www.simplebi.uk)",
Documentation.Examples = {
[
Description = "Example Code",
Code
= "RetrieveCanonicalNames({""Date.Month"",""SalesAmount"",""Profit""},{""Sales Amount"", ""Date Month""})",
Result = "{{""Date.Month"",""Date Month""},{""SalesAmount"",""Sales Amount""}}"
]
}
]
in
Value.ReplaceType(Source, Value.ReplaceMetadata(Value.Type(Source), documentation))
